Products can be customized

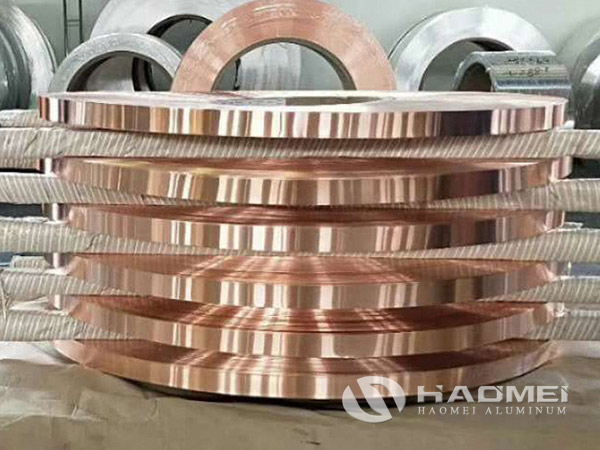

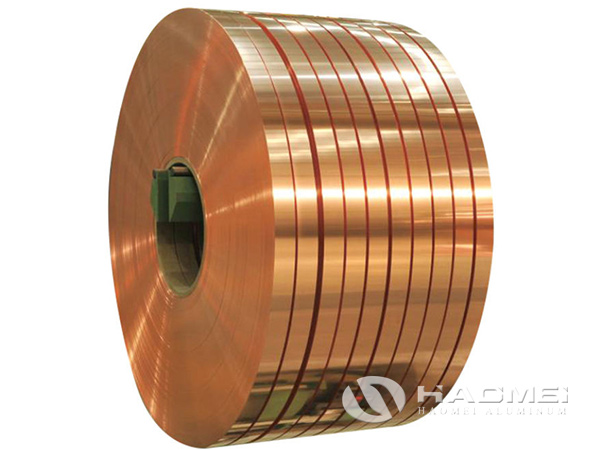

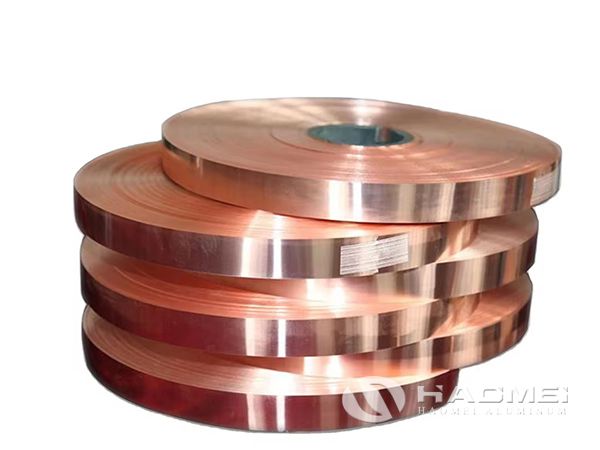

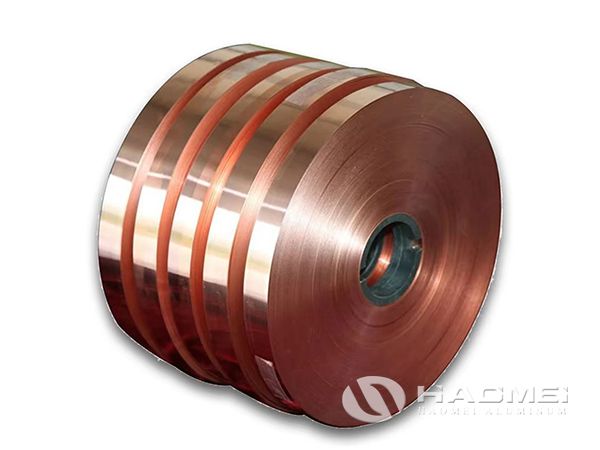

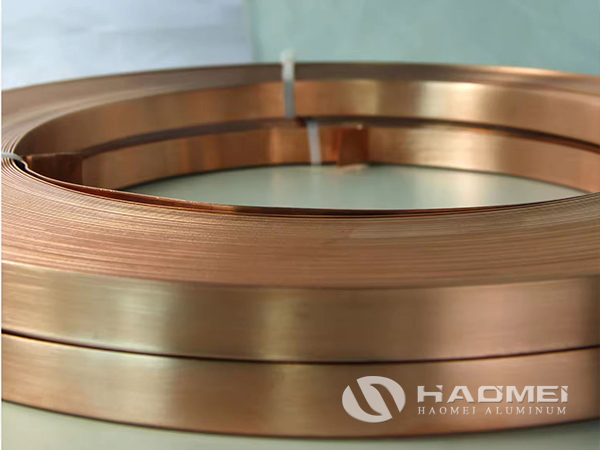

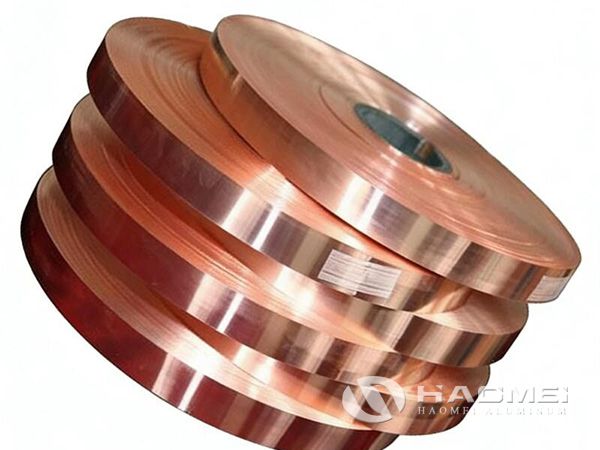

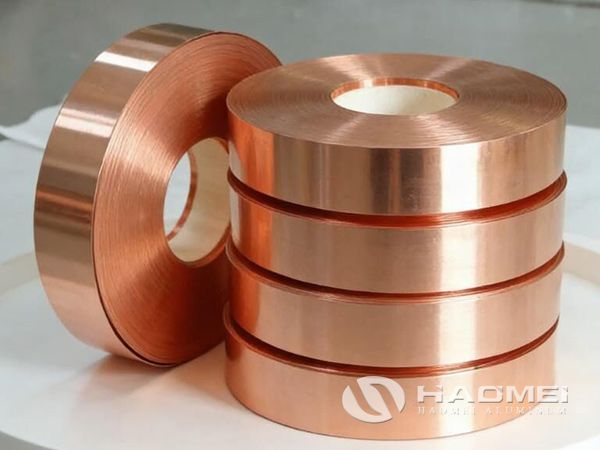

Copper strip for cable armouring is widely used in cable manufacturing for armouring, shielding, screening, grounding and protective wrapping applications. It provides excellent electrical conductivity, good corrosion resistance, stable mechanical properties and reliable processing performance during cable production.
Compared with aluminum strip or steel tape, copper strip offers much higher electrical conductivity and better shielding performance. It is suitable for power cables, control cables, instrumentation cables, communication cables, marine cables, mining cables and special industrial cables.
We supply copper strip and copper tape in different grades, tempers, thicknesses and widths according to customer cable design and production requirements.
In cable armouring and shielding applications, copper strip is usually helically wrapped or longitudinally applied around the cable core. It can provide electrical shielding, grounding continuity, electromagnetic interference protection and additional mechanical protection.
The quality of copper strip directly affects cable performance, production stability and service life. Therefore, the strip should have clean surface, accurate thickness, uniform width, stable mechanical properties and smooth edge quality.
Our copper strip for cable armouring is produced with strict control of conductivity, surface quality, dimensional tolerance and edge condition to ensure stable performance in continuous cable production lines.
Product Name | Copper Strip for Cable Armouring |
Material Grade | T2, C11000, C10200, C12200, Brass H68,H65 |
Optional Surface | Bare copper, Brass |
Temper | O, 1/4 Hard, 1/2 Hard, Hard |
Thickness | 0.05–2.00 mm or customized |
Width | 5–600 mm or customized |
Electrical Conductivity | ≥97% IACS, ≥99% IACS or customized |
Surface | Bright, smooth, clean, oil-free |
Edge | Slit edge, trimmed edge, burr-free edge |
Coil ID | 150 mm, 300 mm, 400 mm, 500 mm or customized |
Coil Weight | According to customer requirements |
Standard | ASTM, EN, JIS, GB or customer specification |
Application | Cable armouring, cable shielding, cable screening, cable wrapping |
Common Specification Range
Application | Common Thickness | Common Width |
Cable shielding / screen | 0.05–0.30 mm | 10–300 mm |
Cable wrapping | 0.10–0.50 mm | 10–500 mm |
Cable armouring | 0.20–1.00 mm | 10–600 mm |
Grounding and protective layer | 0.10–1.50 mm | Customized |
Note: Thickness, width, temper, conductivity, coil ID, coil weight and edge condition can be customized according to cable structure and production process requirements.
Copper Grade | Equivalent Standard | Main Features | Typical Application |
T2 Copper | Chinese Standard | High conductivity, good ductility, widely used | Cable shielding, armouring, wrapping |
C11000 / ETP Copper | ASTM | High electrical conductivity, good formability | Power cable shielding and grounding |
C10200 / OF Copper | ASTM | Oxygen-free copper, excellent conductivity and purity | High-performance cables, special electrical applications |
C12200 / DHP Copper | ASTM | Good weldability and corrosion resistance | Industrial cable protection and special applications |
Recommended Copper Materials
T2 Copper Strip
T2 copper strip is widely used for cable armouring, shielding and electrical applications. It provides high conductivity, good ductility, smooth surface and stable processing performance.
C11000 Copper Strip
C11000 electrolytic tough pitch copper strip offers excellent electrical conductivity and good formability. It is suitable for power cable shielding, cable screen and grounding applications.
C10200 Oxygen-Free Copper Strip
C10200 oxygen-free copper strip has high purity, excellent electrical conductivity and low oxygen content. It is suitable for special cables requiring high electrical performance and stable signal transmission.
Material | Temper | Tensile Strength Rm | Elongation A | Conductivity |
T2 Copper | O | 200–260 MPa | 30–45% | ≥97% IACS |
T2 Copper | 1/4 Hard | 240–300 MPa | 15–30% | ≥97% IACS |
T2 Copper | 1/2 Hard | 280–360 MPa | 8–20% | ≥97% IACS |
T2 Copper | Hard | 350–450 MPa | 3–10% | ≥97% IACS |
C11000 Copper | O | 200–260 MPa | 30–45% | ≥100% IACS |
C11000 Copper | 1/2 Hard | 280–360 MPa | 8–20% | ≥100% IACS |
C10200 Copper | O | 200–250 MPa | 35–50% | ≥100% IACS |
C12200 Copper | O | 220–280 MPa | 30–45% | ≥85% IACS |
Note: The above values are typical reference ranges only. Final mechanical and electrical properties depend on copper grade, temper, thickness, production process and customer technical requirements. Material test certificates can be provided upon request.
Copper strip is widely used in cable applications because of its excellent electrical conductivity. In cable shielding and armouring structures, copper strip can help improve grounding continuity, reduce electromagnetic interference and provide stable electrical protection.
Electrical Advantages:
High electrical conductivity
Good grounding performance
Excellent shielding effect
Low electrical resistance
Stable current carrying performance
Suitable for power cables and signal cables
Reliable performance in cable screen structures
High electrical conductivity
Good electromagnetic shielding performance
Excellent ductility and formability
Good corrosion resistance
Smooth and bright surface
Accurate thickness and width tolerance
Burr-free edge for continuous cable production
Stable tensile strength and elongation
Suitable for wrapping, screening and armouring
Bare copper and tinned copper available
Custom specifications available
Copper strip helps protect cable conductors from electromagnetic interference and improves electrical safety by providing a continuous conductive path. In some special cable structures, copper strip can also provide additional mechanical protection and corrosion resistance.
Copper strip for cable armouring is widely used in:
Power cables
Control cables
Instrumentation cables
Communication cables
Signal cables
Marine cables
Mining cables
Railway cables
Industrial cables
Special cables
Cable shielding layers
Cable screen layers
Cable grounding layers
Cable wrapping and protective layers
Surface and edge quality are very important for cable manufacturing. Poor surface quality may affect conductivity, shielding performance and long-term cable reliability. Edge burrs may damage insulation layers or cause unstable wrapping during production.
Our copper strip can be supplied with:
Bright surface
Smooth surface
Clean and oil-free surface
No oxidation stains
No cracks
No serious scratches
No edge burrs
Uniform width
Stable coil winding

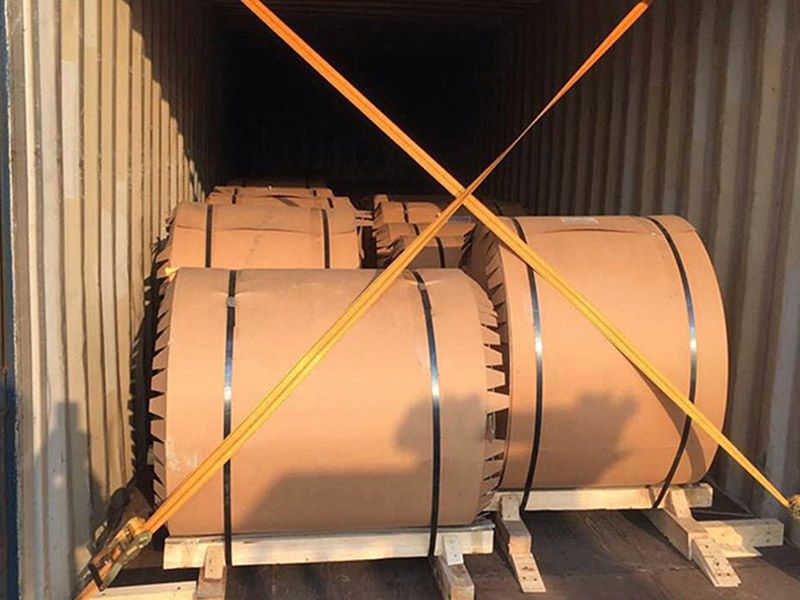

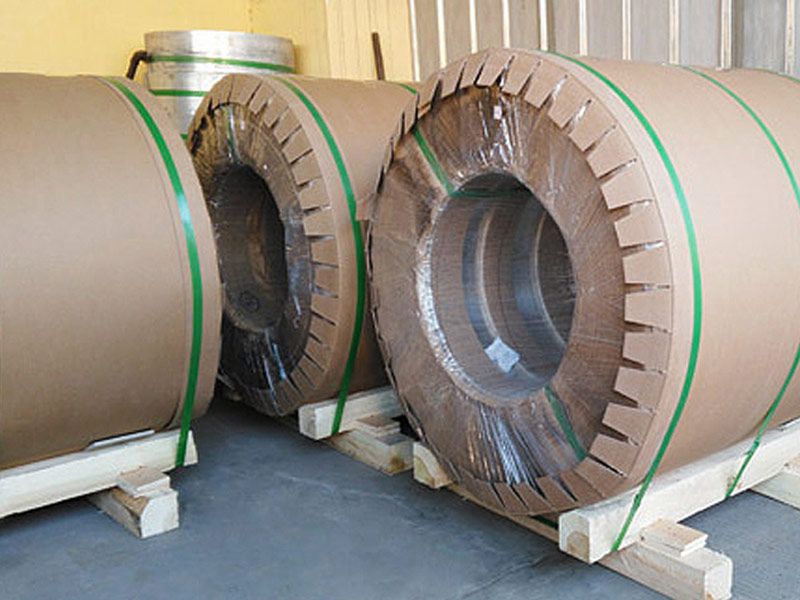

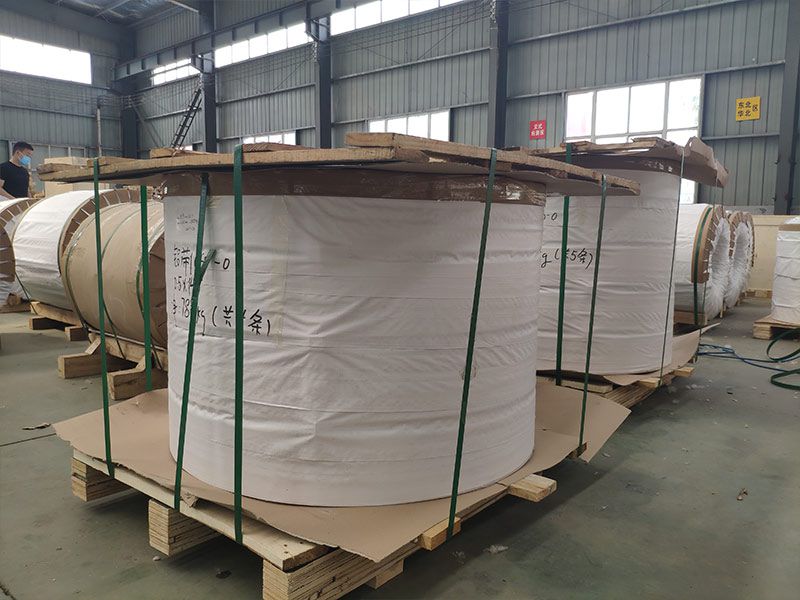

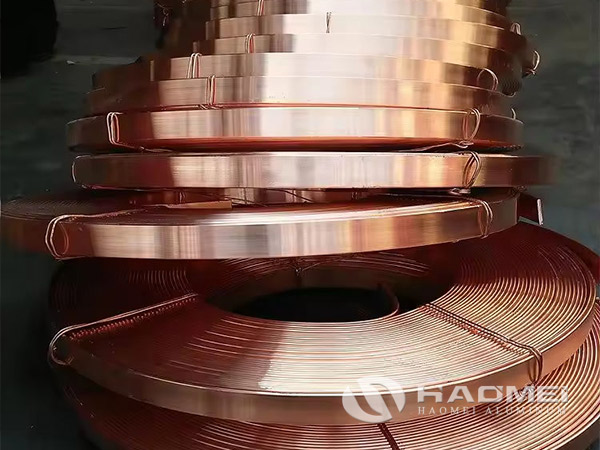

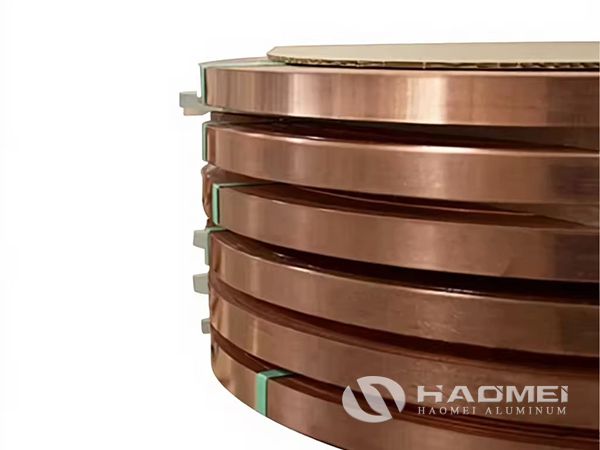

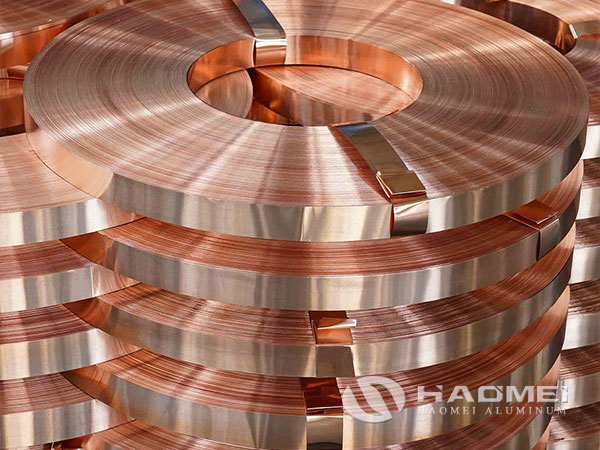

Copper strip for cable armouring is supplied in coils. Each coil is properly packed to prevent oxidation, moisture, surface scratches, edge damage and deformation during transportation.
Packaging Options
Plastic film wrapping
Moisture-proof paper
Anti-oxidation protection
Wooden pallet packaging
Wooden case packaging
Eye-to-sky packaging
Eye-to-wall packaging
Edge protection
Export seaworthy packaging
Q1: What is copper strip for cable armouring used for?
A: It is used in cable manufacturing for armouring, shielding, screening, grounding and protective wrapping applications. It is commonly used in power cables, control cables, communication cables and special cables.
Q2: What copper grades are available?
A: Common grades include T2 copper, C11000 copper, C10200 oxygen-free copper and C12200 copper. Bare copper strip and tinned copper strip are available.
Q3: Can copper strip be used for cable shielding?
A: Yes. Copper strip is widely used for cable shielding and screening because of its high electrical conductivity and excellent electromagnetic shielding performance.
Q4: What is the difference between copper strip and copper tape for cables?
A: In many cable applications, copper strip and copper tape refer to similar flat copper materials. “Copper tape” is often used for thinner and narrower materials, while “copper strip” may refer to a wider range of thicknesses and widths.
Q5: Can you provide burr-free edge copper strip?
A: Yes. We can provide precision slit and burr-controlled copper strip to ensure smooth edge quality for continuous cable production.
Q6: Can thickness and width be customized?
A: Yes. Thickness, width, temper, conductivity, coil inner diameter, coil weight and edge condition can be customized according to customer requirements.
Q7: Can you provide material test certificates?
A: Yes. Material test certificates including chemical composition, conductivity, tensile strength and elongation can be provided upon request.
