Products can be customized

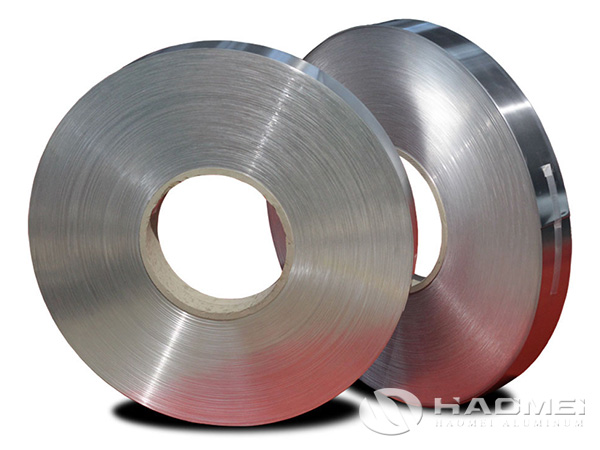

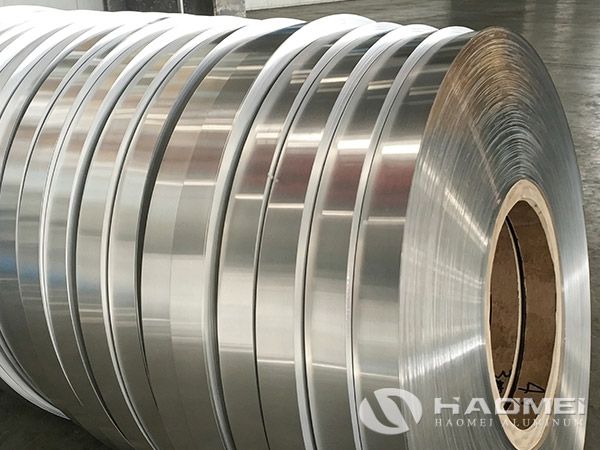

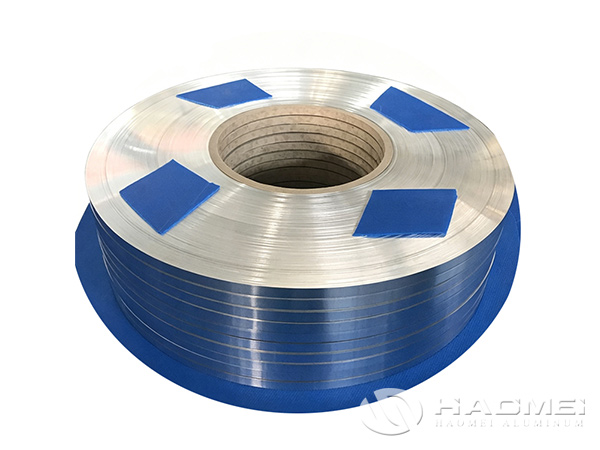

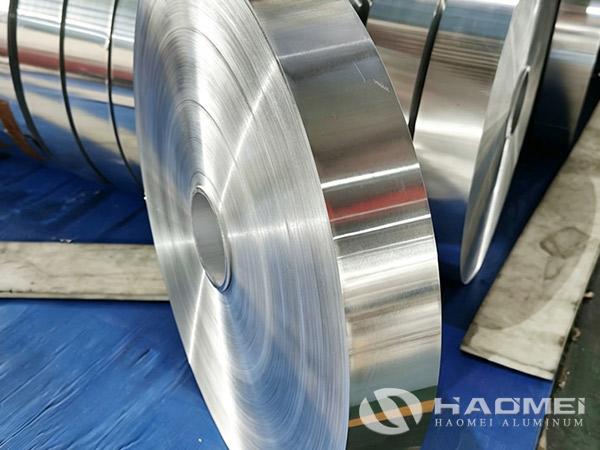

Interlocking armored cable aluminum strip is specially used for producing interlocked armor layers in armored cables. During cable manufacturing, the aluminum strip is continuously formed and interlocked around the cable core to provide mechanical protection, flexibility, impact resistance and corrosion resistance.
Compared with steel armor, aluminum interlocking armor offers lighter weight, better corrosion resistance and easier installation performance, making it widely used in power cables, control cables, instrumentation cables, industrial cables and metal-clad cable systems.
We supply aluminum strips in different alloys, tempers, thicknesses and widths according to customer cable design and production requirements. 3000 series and 5000 series aluminum alloys are commonly recommended for interlocking armored cable applications.
Product Name | Interlocking Armored Cable Aluminum Strip |
Alloy | 3003, 3004, 5005, 5052, 5154, 5754 |
Temper | O, H12, H14, H16, H18, H22, H24, H32, H34 |
Thickness | 0.20–1.50 mm or customized |
Width | 8–80 mm or customized |
Inner Diameter | 150 mm, 300 mm, 400 mm, 500 mm or customized |
Surface | Smooth, clean, mill finish, oil-free |
Edge | Slit edge, trimmed edge, burr-free edge |
Coil Type | Narrow strip coil |
Tolerance | According to customer requirements |
Application | Interlocking armored cable, metal-clad cable, cable armoring |
Common thickness and width：
Common Thickness | Common Width |
0.40 mm | 10–20 mm |
0.50 mm | 12–25 mm |
0.60 mm | 15–30 mm |
0.80 mm | 18–35 mm |
1.00 mm | 20–50 mm |
Note: Thickness and width can be customized according to cable size, armoring machine and cable design requirements.
Alloy Series | Common Alloys | Main Features | Typical Application |
3000 Series | 3003, 3004 | Moderate strength, good formability, good corrosion resistance | General interlocking armored cables |
5000 Series | 5005, 5052, 5154, 5754 | Higher strength, excellent corrosion resistance, good mechanical stability | Industrial cables, marine cables, outdoor cables, heavy-duty armored cables |
Recommended Aluminum Alloys
3003 Aluminum Strip
3003 aluminum strip provides good formability, moderate strength and corrosion resistance. It is suitable for general interlocking armored cable applications where balanced performance and cost efficiency are required.
5052 Aluminum Strip
5052 aluminum strip is one of the most commonly used 5000 series materials for cable armoring. It offers higher tensile strength, good bending performance and excellent corrosion resistance.
5154 Aluminum Strip
5154 aluminum strip provides higher strength than 5052 and good corrosion resistance. It is suitable for cable armoring applications requiring better mechanical protection and durability.
Interlocking armored cable aluminum strip requires good tensile strength, proper yield strength and stable elongation to ensure smooth forming and interlocking during cable armoring production. Soft and semi-hard tempers provide good bending and forming performance, while harder tempers provide better mechanical protection and dimensional stability.
Alloy | Temper | Tensile Strength Rm | Yield Strength Rp0.2 | Elongation A | Features |
3003 | O | 95–130 MPa | 35–65 MPa | 18–30% | Good formability and moderate strength |
3003 | H14 | 140–180 MPa | 115–160 MPa | 3–10% | Stable strength for general cable armoring |
3003 | H16 | 160–200 MPa | 140–180 MPa | 2–7% | Higher strength and good dimensional stability |
5052 | O | 170–215 MPa | 65–100 MPa | 12–25% | Excellent formability and corrosion resistance |
5052 | H32 | 210–260 MPa | 130–190 MPa | 5–12% | Good balance of strength and forming performance |
5052 | H34 | 230–280 MPa | 160–215 MPa | 4–10% | Higher strength and stable interlocking performance |
5154 | O | 220–270 MPa | 85–125 MPa | 14–25% | High ductility and good corrosion resistance |
5154 | H32 | 255–305 MPa | 160–220 MPa | 6–14% | Suitable for heavy-duty armored cable |
5154 | H34 | 280–330 MPa | 190–250 MPa | 5–12% | Higher strength for demanding applications |
5000 series aluminum alloys, such as 5052, 5154 and 5754, are widely used for interlocking armored cable applications because they provide better strength and corrosion resistance than pure aluminum alloys.
Advantages of 5000 Series Aluminum Strip
Higher tensile strength
Better corrosion resistance
Good bending and forming performance
Suitable for outdoor and industrial environments
Good resistance to cracking during interlocking forming
Better mechanical protection for cable cores
Suitable for marine cables, industrial cables and heavy-duty cables
Good interlocking forming performance
Stable tensile strength and elongation
Excellent corrosion resistance

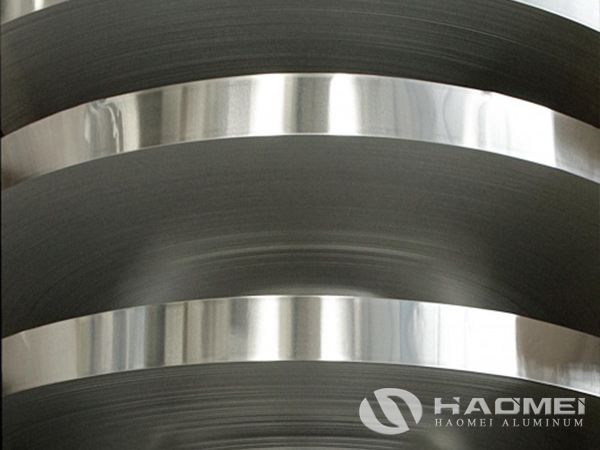

Smooth and clean surface
Burr-free edge for continuous cable production
Good bending performance without cracking
Accurate thickness and width tolerance
Suitable for high-speed armoring machines
3000 series and 5000 series alloys available
Custom thickness, width, coil ID and temper available

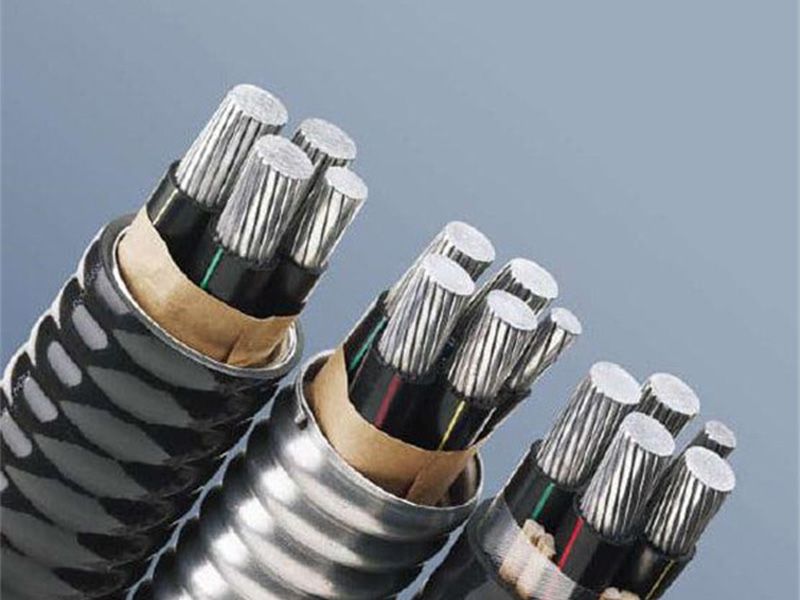

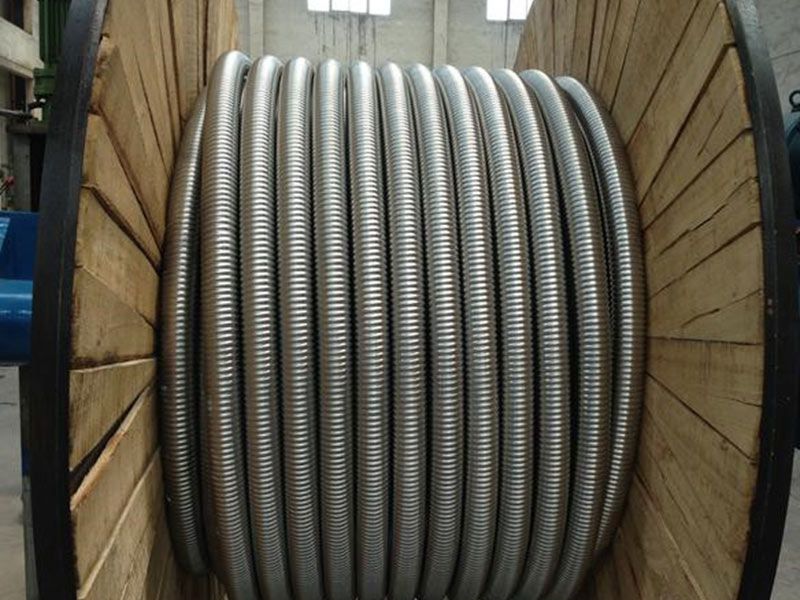

During cable production, the aluminum strip is formed into an interlocked armor layer around the cable core. This armor structure provides mechanical protection while maintaining cable flexibility. The interlocked aluminum armor helps protect cables from crushing, impact, abrasion and external mechanical damage.
Interlocking armored cable aluminum strip is widely used in:
Interlocking armored power cables
Metal-clad cables
MC cables
AC cables
Control cables
Instrumentation cables
Industrial cables
Building wires
Outdoor cables
Marine cables
Mining cables
Flexible armored cables
Heavy-duty cable protection systems
For interlocking armored cable aluminum strip, the following quality requirements are important:
Uniform thickness
Accurate width tolerance
Smooth and clean surface
No cracks
No oxidation stains
No oil contamination
No wave edge
No edge burrs
Stable tensile strength
Stable elongation
Good coil winding quality
Good forming performance during interlocking

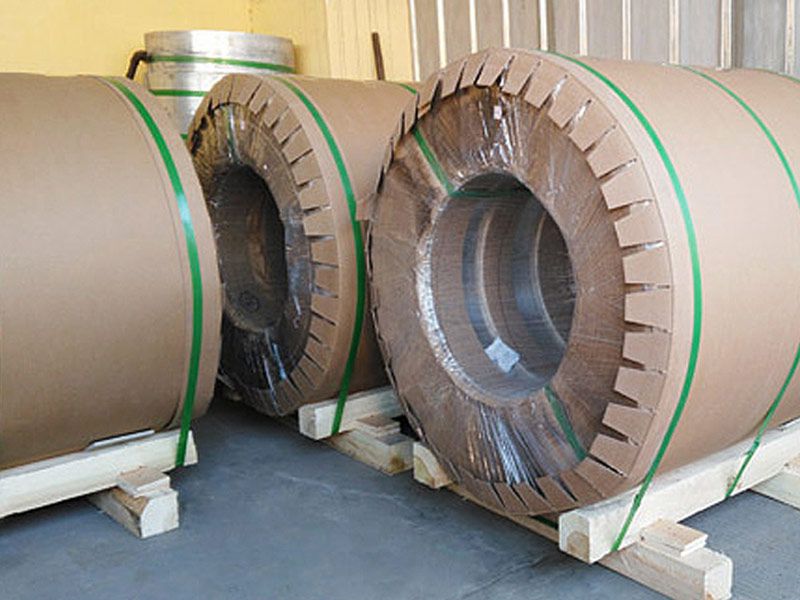

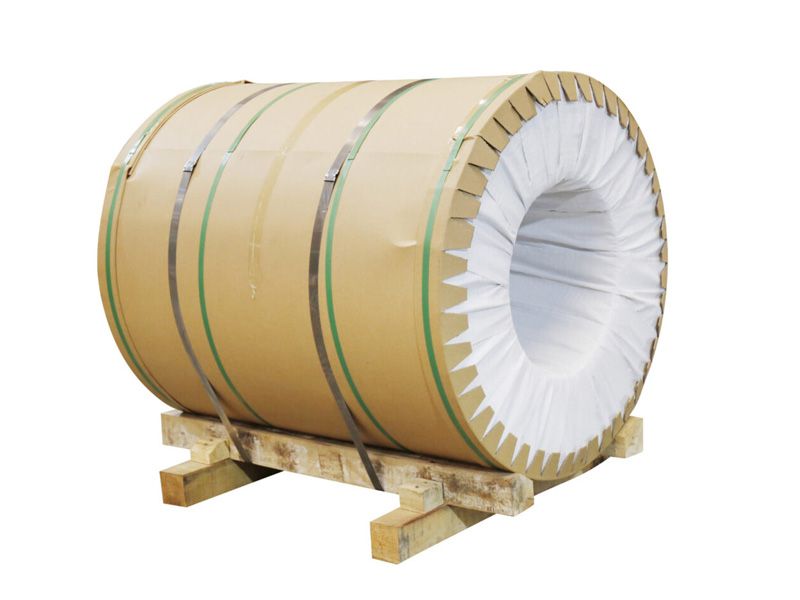

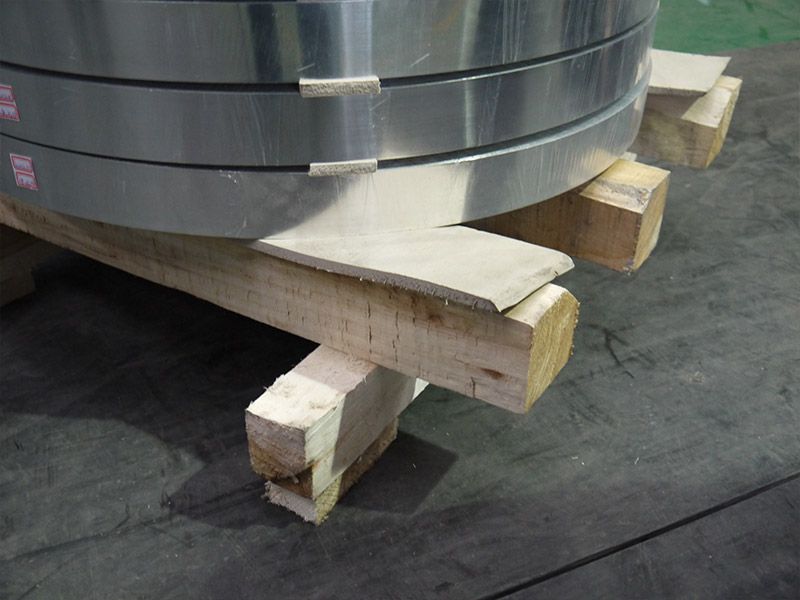

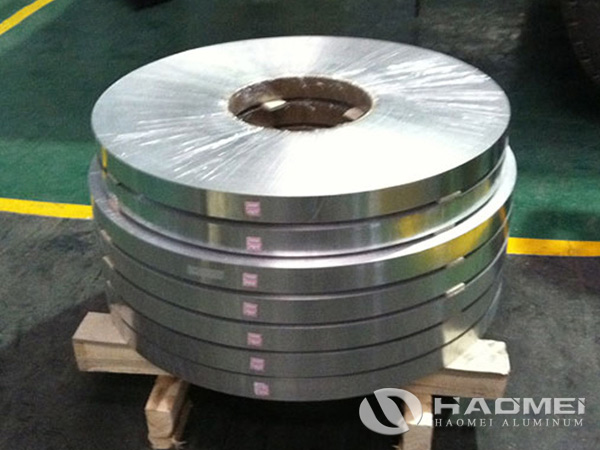

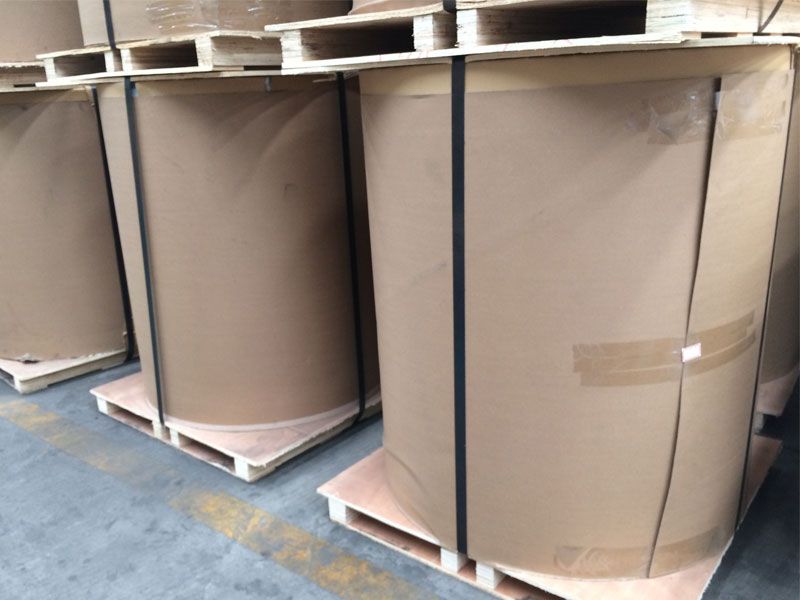

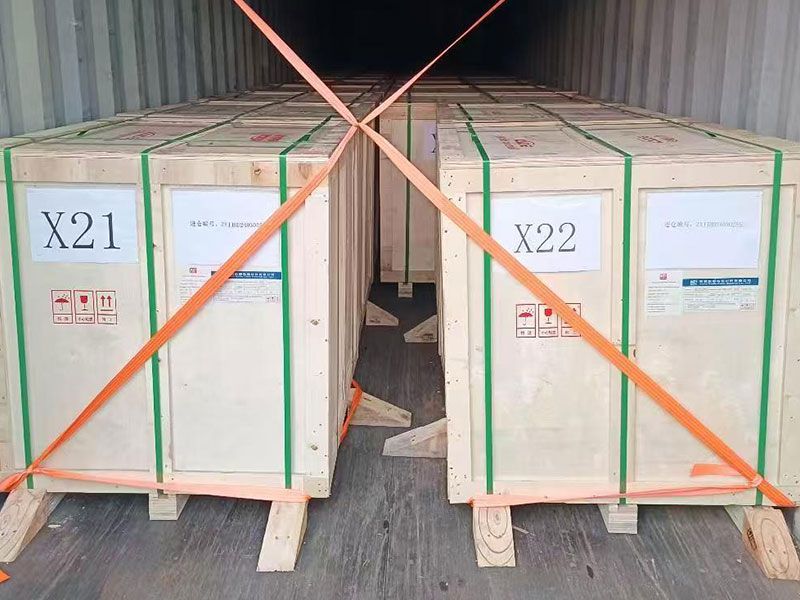

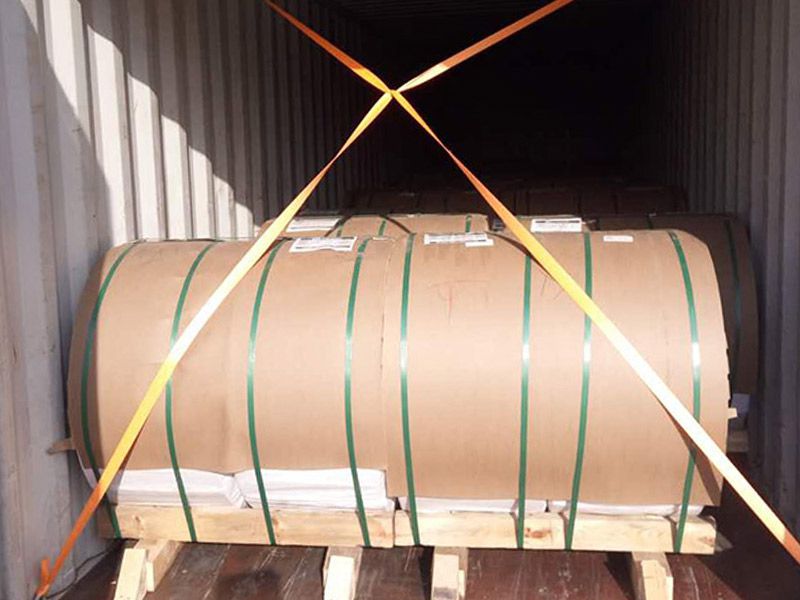

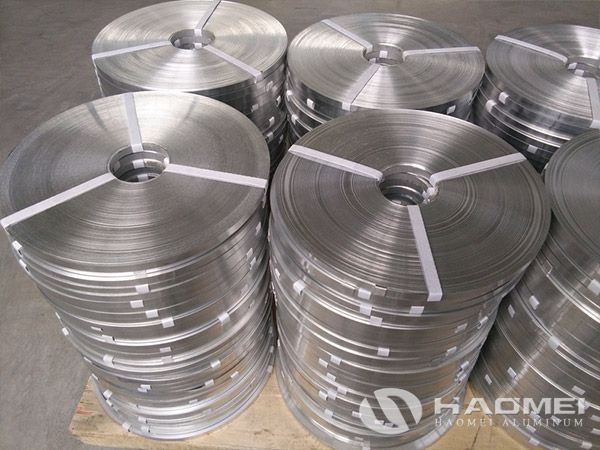

Interlocking armored cable aluminum strip is usually supplied in narrow strip coils. Each coil can be packed with moisture-proof paper, plastic film, wooden pallet or wooden case according to export transportation requirements.
Packaging Options
Eye-to-sky coil packaging
Eye-to-wall coil packaging
Wooden pallet packaging
Wooden case packaging
Moisture-proof packaging
Edge protection
Export seaworthy packaging
Q1: What alloys are commonly used for interlocking armored cable aluminum strip?
A: Common alloys include 3003, 3004, 5005, 5052, 5154 and 5754. For higher strength and corrosion resistance, 5000 series aluminum alloys such as 5052, 5154 and 5754 are commonly recommended.
Q2: Can 5000 series aluminum strip be used for interlocking armored cable?
A: Yes. 5000 series aluminum strip is suitable for interlocking armored cable applications requiring better mechanical strength, corrosion resistance and forming stability.
Q3: Which temper is suitable for interlocking armor forming?
A: The suitable temper depends on cable design and armoring machine requirements. Common tempers include O, H14, H16, H24, H32 and H34. Semi-hard tempers are often used to balance formability and strength.
Q4: Can you customize thickness and width?
A: Yes. Thickness, width, coil inner diameter, coil weight, edge condition and temper can be customized according to customer requirements.
Q5: Can you provide burr-free edge aluminum strip?

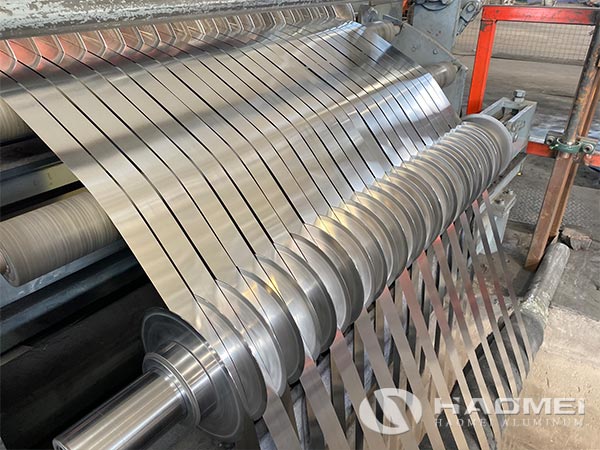

A: Yes. Precision slitting and edge control can be provided to ensure smooth, trimmed and burr-free edges for stable cable armoring production.
Q6: Can you provide material test certificates?
A: Yes. Material test certificates including chemical composition, tensile strength, yield strength and elongation can be provided upon request.
